Linux App Qt Creator¶

Objective¶

This wiki page will describe how to setup Qt Creator so it can be used to build and run an ARM Linux user-level program on the AM62 platform.

References¶

• https://www.youtube.com/watch?v=QYzdBbwY4dM
• https://yocto.yoctoproject.narkive.com/XZjqjf60/rocko-cmake-buld-cstdlib-75-15-fatal-error-stdlib-h-no-such-file-or-directory

General Setup¶

• Install and launch Qt Creator: https://download.qt.io/official_releases/qtcreator/latest/
• Download and install Ti's processor sdk: TI processor SDK (v10.01.10.04)

Qt Creator CMake Hello_World example¶

Source the toolchain and launch Qt Creator

* /<SDK_INSTALL_DIR>/ti-processor-sdk-linux-am62xx-evm-10.01.10.04/linux-devkit/environment-setup
* /<QT_CREATOR_INSTALL_DIR>/qtcreator-16.0.0/bin/qtcreator

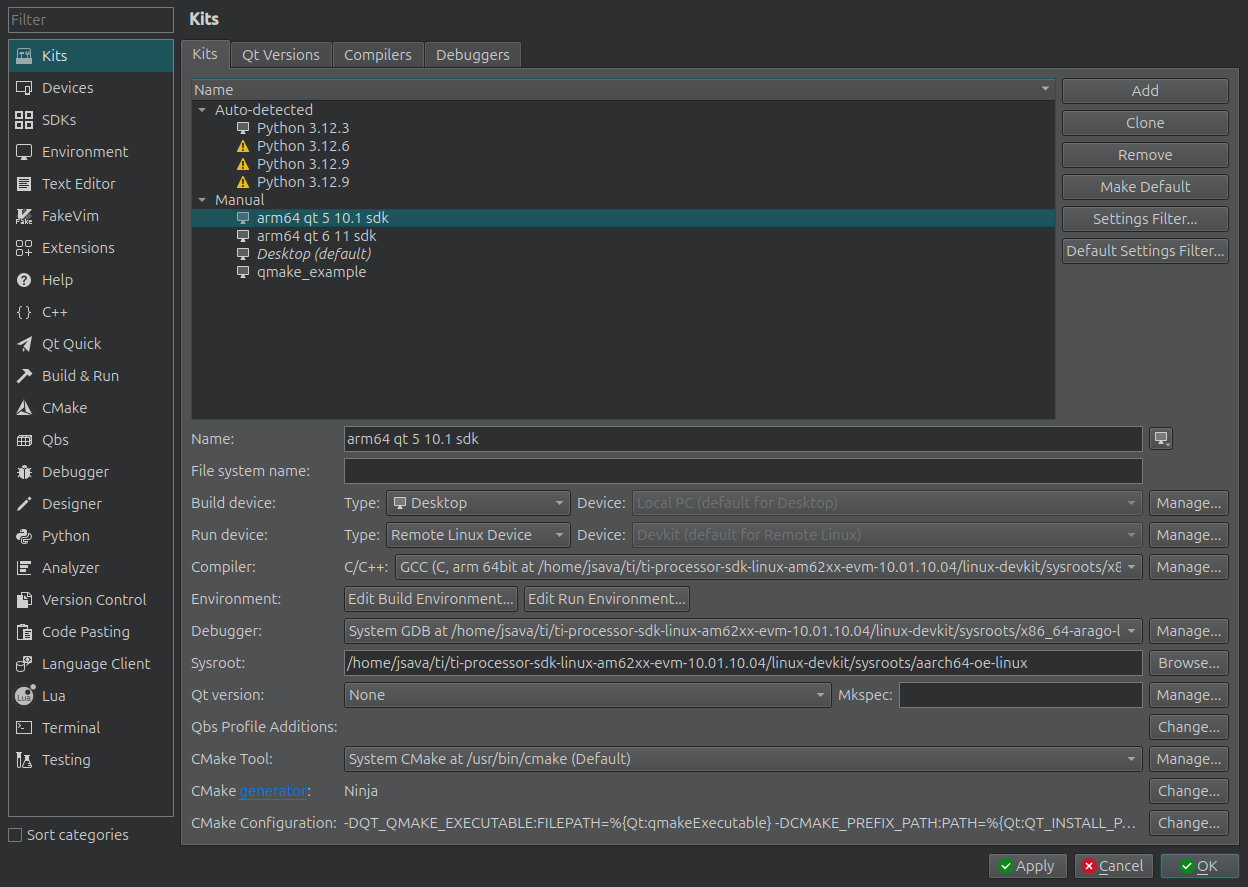

Create a kit SDK 10.01

• Navigate to toolbar: Edit->Preferences
  • Select the "Kits" category
    • On the Kits tab hit "Add"
    • Name: "arm64 qt 5 10.1 sdk"
    • Build device: Type: "Desktop"
    • Run device: Type: "Remote Linux Device"
    • Compiler: C/C++: GCC (C, arm 64bit at /<SDK_INSTALL_DIR>/ti-processor-sdk-linux-am62xx-evm-10.01.10.04/linux-devkit/sysroots/x86_64-arago-linux/usr/bin/aarch64-oe-linux/aarch64-oe-linux-gcc)
    • Debugger: System GDB at /<SDK_INSTALL_DIR>/ti-processor-sdk-linux-am62xx-evm-10.01.10.04/linux-devkit/sysroots/x86_64-arago-linux/usr/bin/aarch64-oe-linux/aarch64-oe-linux-gdb
    • Sysroot: /<SDK_INSTALL_DIR>/ti-processor-sdk-linux-am62xx-evm-10.01.10.04/linux-devkit/sysroots/aarch64-oe-linux
    • Qt version: "None"
    • CMake Tool" "System CMake at /usr/bin/cmake (Default)
    • CMake Configuration select "Change" and add the following lines


      -DOE_QMAKE_PATH_EXTERNAL_HOST_BINS:STRING=%{Env:OE_QMAKE_PATH_HOST_BINS}
      -DCMAKE_NO_SYSTEM_FROM_IMPORTED:UNINITIALIZED=1


• Click "Apply" then "Ok"

Note: If the Compiler or Debugger are not automatically detected select their respective tab and add the paths above.

Create a kit SDK 11
TODO

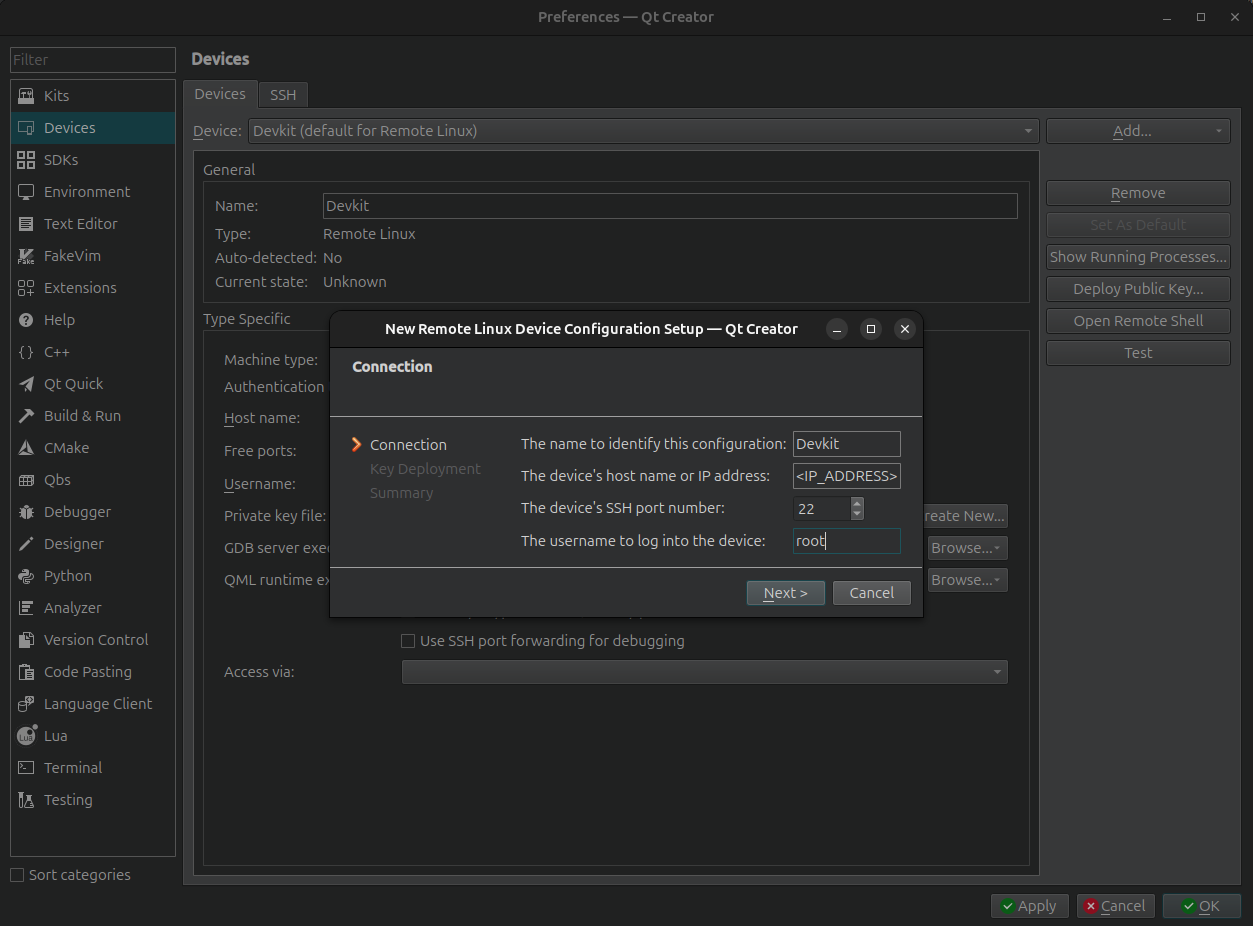

Add the device

• Navigate to toolbar: Edit->Preferences
  • Select the "Device" category
    • In the "Devices" tab select Add->Remote Linux Device->Start Wizard
      • The name to identify this configuration: "Devkit"
      • The device's host name or IP address: <DEVKIT_IP_ADDRESS>
      • The username to log into the device: "root"

    • Hit "Next" until it prompts to "Finish" the creating the device
    • Device test should finish successfully
  • Click "Apply" then "Ok"

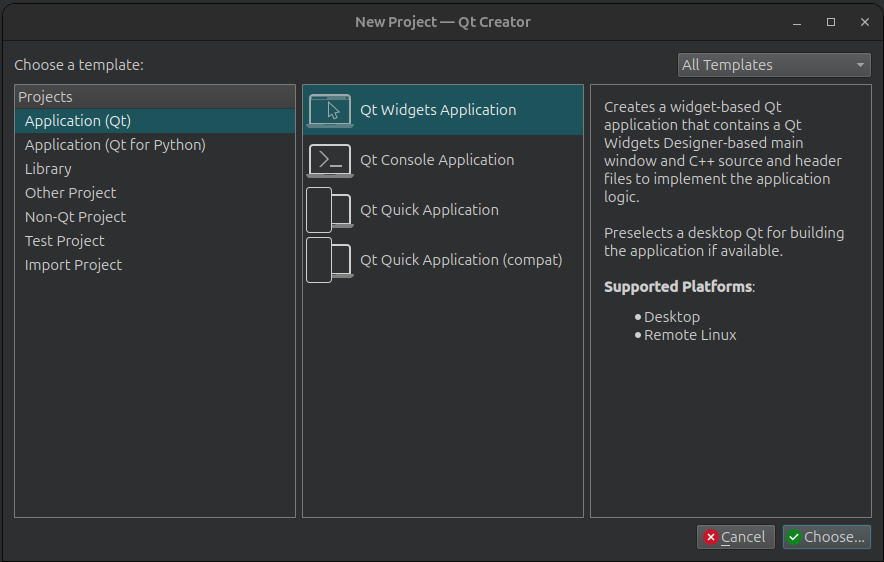

Create a Qt Widget Project

• Navigate to toolbar: File->New Project
  • The following window should appear. Select "Qt Widgets Application"

  • Name: "hello_world_gui"
  • Next
  • Build System: "CMake"
  • Select "Next" until it prompts to "Finish" the project

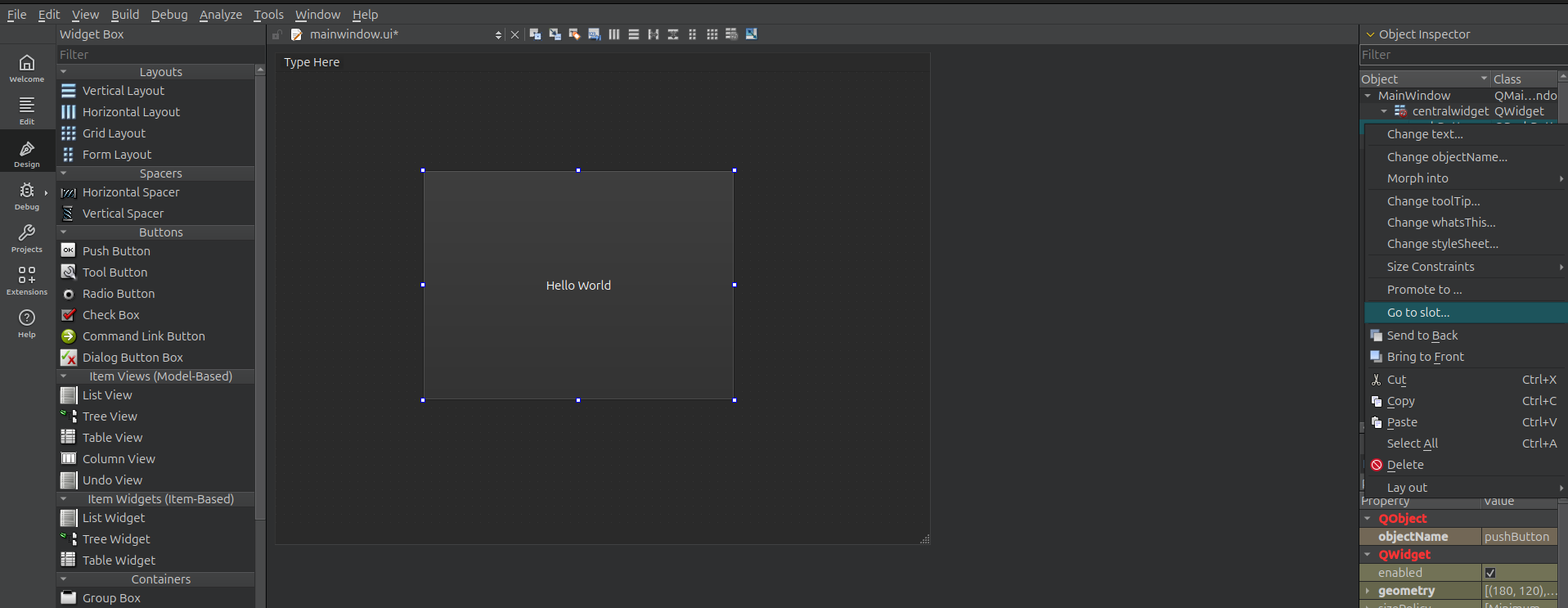

Update UI Window

• Navigate to the newly created project
  • Select hello_world_gui->hello_world_gui->Froms->mainwindow.ui
  • The "Design" Tab should now be open
    • Drag and drop a "Push Button" into the window
    • Navigate to "Object Inspector" on the right hand side of the screen
      • right click on "pushButton" and select "go to slots"
        • Hit "ok" in the pop up window

Update Source Code

• Update mainwindow.cpp to have the following code:


  #include "mainwindow.h"
  #include "./ui_mainwindow.h"

  MainWindow::MainWindow(QWidget *parent)
      : QMainWindow(parent)
      , ui(new Ui::MainWindow)
  {
      ui->setupUi(this);
      color = 0;
      ui->pushButton->setStyleSheet("QPushButton {background-color: purple;}\n");
  }

  MainWindow::~MainWindow()
  {
      delete ui;
  }

  void MainWindow::on_pushButton_clicked()
  {
      QString colors[4] = {"orange", "yellow", "green", "red"};
      color = (color + 1) & 0x3;

      ui->pushButton->setStyleSheet("QPushButton {background-color: " + colors[color] + ";}\n");
  }


• Update main.cpp to have the following code:


  #include "mainwindow.h"

  #include <QApplication>

  int main(int argc, char *argv[])
  {
      QApplication a(argc, argv);

      MainWindow w;
      w.setWindowTitle("Hello QT App");
      w.show();
      return a.exec();
  }


Update Header files

• Update mainwindow.h to have the following code:


  #ifndef MAINWINDOW_H
  #define MAINWINDOW_H

  #include <QMainWindow>

  QT_BEGIN_NAMESPACE
  namespace Ui {
  class MainWindow;
  }
  QT_END_NAMESPACE

  class MainWindow : public QMainWindow
  {
      Q_OBJECT

  public:
      MainWindow(QWidget *parent = nullptr);
      ~MainWindow();

  private slots:
      void on_pushButton_clicked();

  private:
      Ui::MainWindow *ui;
      int color;
  };
  #endif // MAINWINDOW_H


Build the project by selecting the hammer in the bottom left hand side of the screen.

The project should build without any issues

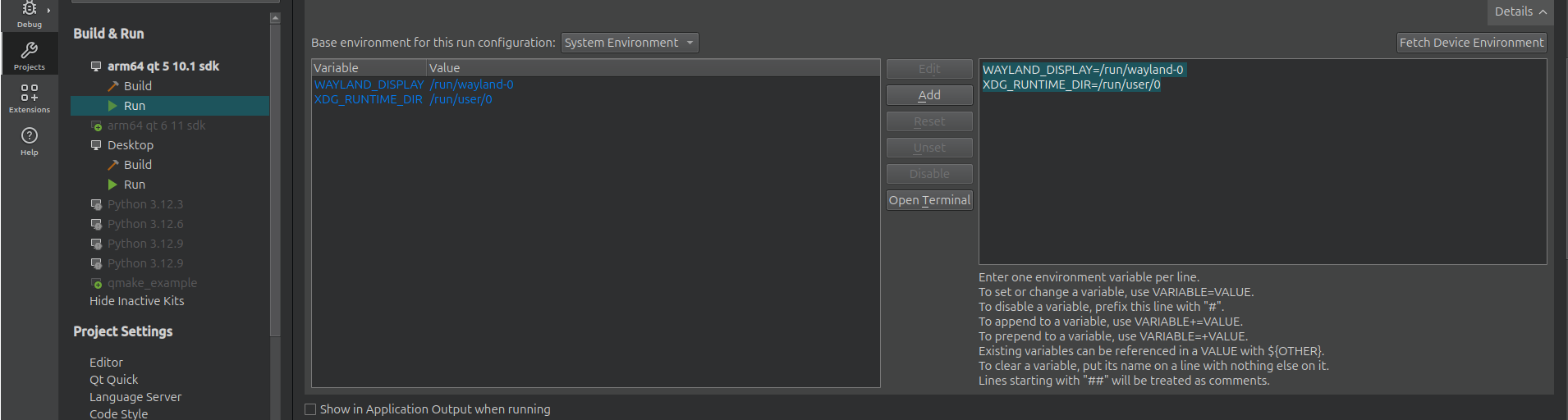

Add Environment Variables

• Qt Creator needs to know the following Environmental variables in order to launch on the Devkit
• In the toolbar on the left hand side of the screen select "Project"
  • Under "Build and Run" select arm64 qt 5 10.1 sdk->Run
    • In "Run Settings" find "Environment"
      • Select Details and add the following


        WAYLAND_DISPLAY=/run/wayland-0
        XDG_RUNTIME_DIR=/run/user/0

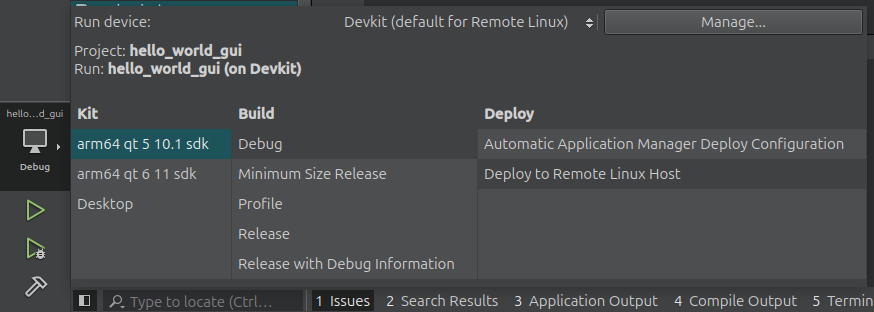

Launch the project on the Devkit

• In the toolbar on the left hand side of the screen navigate to the monitor icon with "Debug" below it
  • Double check that the correct kit is selected

• Select the green launch icon below the monitor icon

The GUI window should now appear on the Devkit. Make sure the HDMI display is connected.

Try plugging a mouse into the USB on J6 and clicking the push button in the GUI.

It should change colors.
